Easy to use, modular, evolutive and performing the IPEVIA SECUR solution has been designed for the shops, small and medium sizes companies, offices… aimed at meeting their essential needs and challenges. Its intuitive and ergonomic software has been developed to allow quick and simple operation, while offering extensive configuration possibilities.
> 4 reader central, entry/exit modules
> Access control for up to 100,000 users per site and 1,000 access profiles per central
> Visitor management, booking of rooms, employee portal
> Up to 12 entries / exits by adding an add-on module
> Up to 220 entries / exits per central via RS485 add-on modules
> Impedance or on/off inputs (NO / NC configurable)
> 24V 2A dry contact outputs (C, NO, NC, software reversible)
> Unlimited number of doors per site / 384 doors per network
> Permanent / temporary access profiles, secure access in time slot (badge + code or presence of a responsible person)
> Time management on badges, doors, readers, exits, public holidays and building work Lift management (up to 110 floors)
> Single entry: anti-passback, anti-timeback
> Overall tally and/or by company, access profile, user
> Automatic search of centrals
> Management of software permission levels
> Native interfacing with the MEDEA anti-intrusion system
Read more
A simple, effective and complete solution

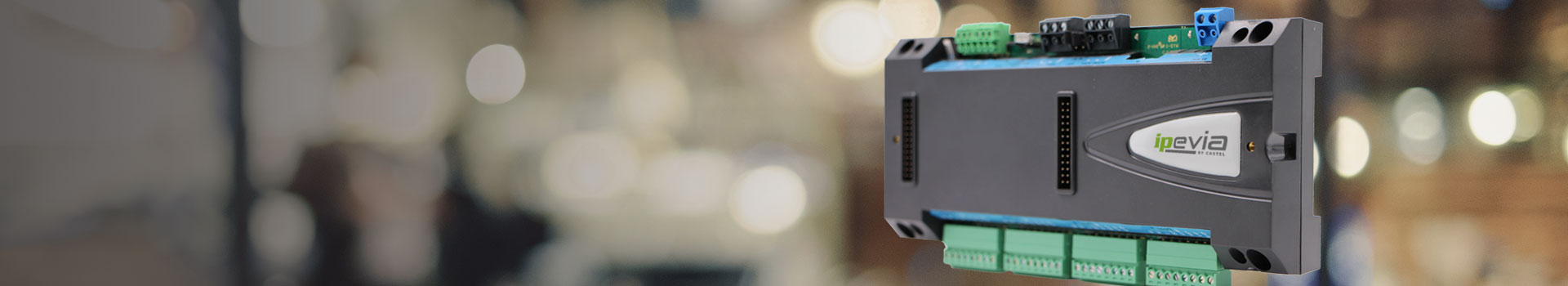

IPEVIA SECUR 4L central and the IPEVIA Manager software have been designed to make them easy to use. The solution is for everyone, from the beginner user to the access control professional.
It adapts to your needs and has all the necessary features to manage and secure your buildings: access control, visitor management, booking of rooms, employee portal, anti-intrusion, Ten’ Up tennis booking, lift management, video control, etc.
An IP-based solution
For extra performance, the centrals are IP-native, enabling fast data transfer, intercommunication between centrals , and remote management. The centrals also have PoE power.
Use of existing IP infrastructure allows installation at no significant additional cost.
Increased security
The IPEVIA SECUR solution provides secure access management, with the AES 128-bit encryption algorithm securing data exchanges between the badge and the reader, and a secure 2-wire RS485 link between the reader and the central.

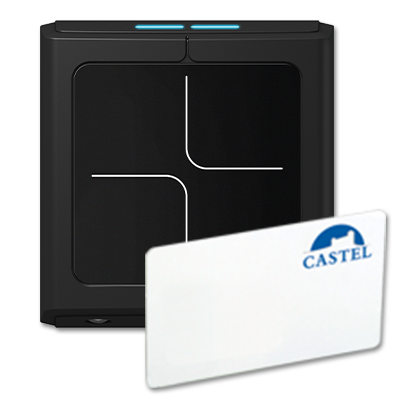

Associated with the Mifare Plus range of upgradeable security readers, the information on the badge is protected, providing optimum protection for your access and data.
A multi-company, multi-site solution
Advanced management of the software use rights allows different companies to use IPEVIA on the same site (e.g. offices on different floors).
The solution’s IP architecture also allows multi-site management (chain stores, etc.).
Interfacing with MEDEA anti-intrusion system
To provide a global security solution, IPEVIA SECUR interfaces natively with the MEDEA multifunction hybrid anti-intrusion system.
With a powerful processor and advanced software, MEDEA is a native IP system offering innovative operational capacity and flexibility.
MEDEA’s range and integration with building automation, BMS/CTM and video surveillance make it the ideal solution for security in commercial and industrial buildings.
A reliable, multi-technology solution
CASTEL’s industrial experience as a manufacturer of access control solutions (readers, centrals, software, etc.) is your guarantee of reliable equipment. IPEVIA remains an open solution and is designed to be compatible with all Wiegand readers on the market.
A modular and scalable solution
IPEVIA’s modular design adapts to all types of buildings. Regardless of the size of the site when installed, from the point of view of size or features, IPEVIA is always ready to become more powerful when you need it.
